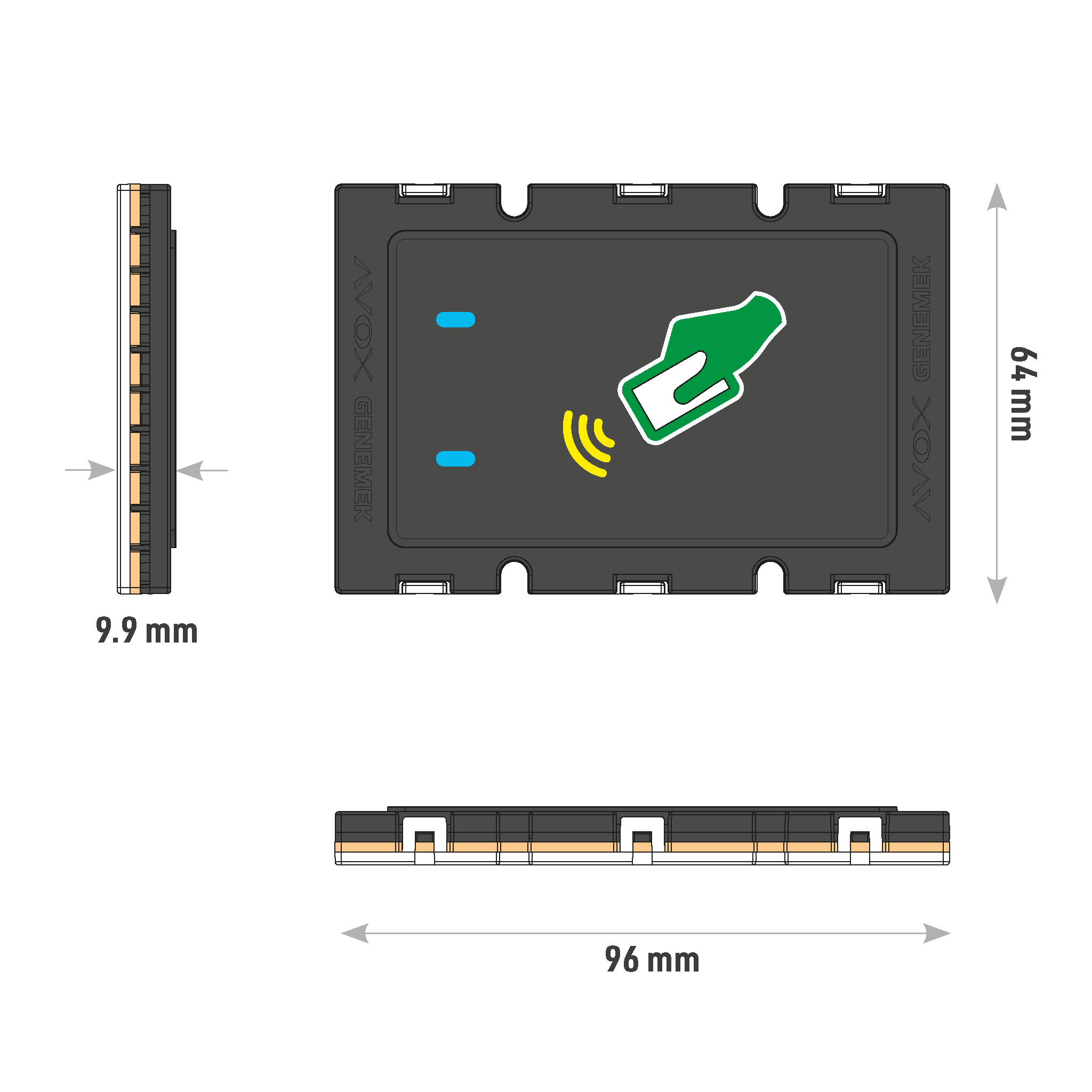

Dimensions
Sharelock – Watson
About
General use of Radio Frequency Identification security control module. One Sharelock RFID card reader module has two separete relays and outputs that can be used for two different administration purposes at the same time. Up to 100 RFID card data can be registered on a non-volatile memory. Due to its thin design module can be placed in AVOX car or landing operator panels.
Sharelock can be easily programmed with on-board push buttons. The end users can create their own MASTER CARD to record a new card to the module memory.
LED LEGEND
— RED : Access denied
— GREEN : Access granted
— BLUE : Activated relay output
— YELLOW : Recording mode activated
Features
â–ª 2 separate dry contact relay outputs
â–ª Memory up to 100 RFID cards (cards not included)
â–ª ISO/IEC 14443 A and ISO/IEC 14443 B
â–ª Non volatile memory
â–ª LED lights to indicate the status of the module
â–ª Programmable by three push buttons on the module
â–ª Programmable by the end user by using
MASTER CARD
â–ª On-board buzzer
â–ª 9.9mm thin design, compatibility with AVOX
â–ª Firmware and cards database update via SD card
â–ª 1x CAN bus Interface
