AVOX
*illustrative purposes only. Images may have contain extra features

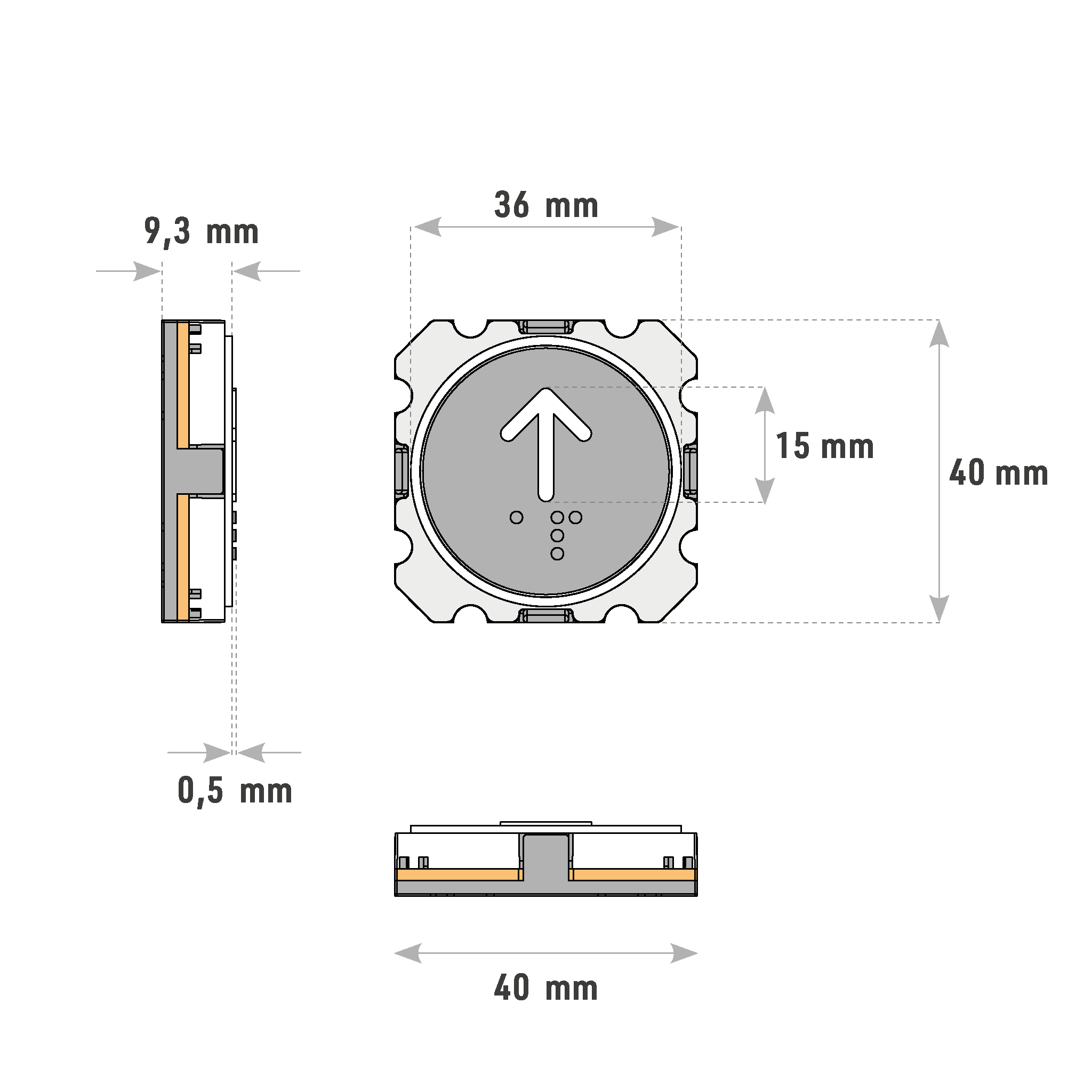

Dimensions
Available surface finishes
AVOX
About
AVOX ultra thin push buttons are designed to work with AVOX COPs & LOPs together seemlessly. 4 LEDs illuminate the transparent button icon and the outer ring evenly. Smart design of the button body doesn’t require mechanical spring load and still generates required force for EN81-70 standards. Locking mechanism system doesn’t require any screws and can be easily attached or detached. High quality tact switches are used to ensure a long life span of usage. Various braille or standard figures like numbers, letters and function icons are available. Different types of buttons also available for various purposes.
Features
▪ Even lighting via 4 LED lights
▪ Protruding symbols for people with poor eyesight
▪ Durable silicone plunger of the tact switch
▪ Optional braille bumps, buzzer sound
▪ Decorative surface finishes available
AVOX BUTTON OPTIONS
AVNS4.B
N/S4, LED(blu)
AVNS4.G.B
N/S4, LED(grn), Braille bumps on push plate
AVNS3.R.Z.B
N/S3,LED(red), Braille bumps on push plate, Buzzer
AVNS4.R.NONO
N/S4,LED(none), dual contact(NO,NO)
P.AV.ERG & P.AV.ERR
Protruted ring on button
AVNS4.STP
N/S4, STOP on/off, without relay
AVNS4.R.NONC
N/S4, LED(red) ,dual contact(NC,NO)
AVNS4.FAN
N/S4, FAN on/off/timer, without relay
Available Figures
