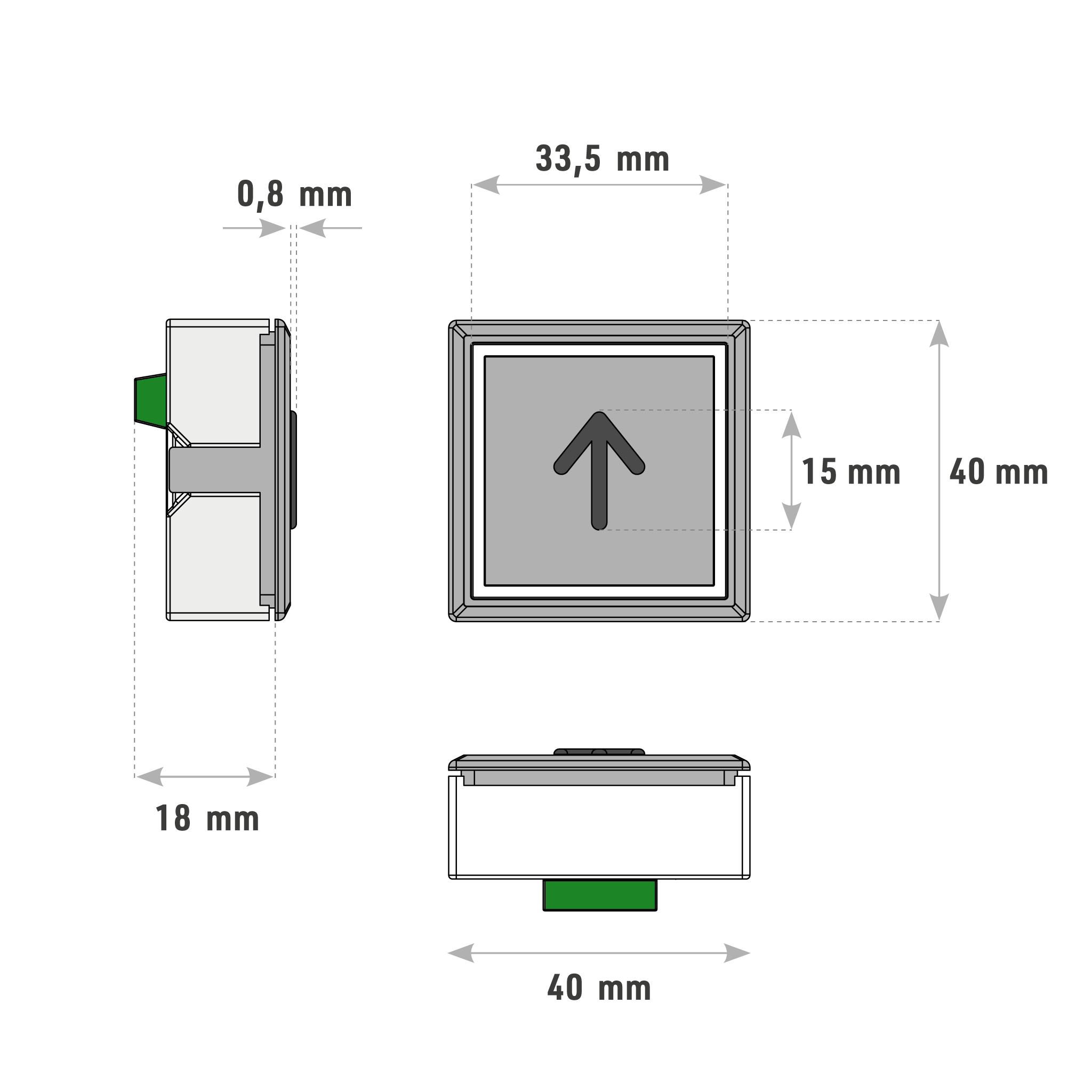

Dimensions
Quad_dimensions
Available surface finishes
available_finishes_light
QUAD

QUAD

PREMIUM QUALITY PUSH BUTTONS
About

QUAD buttons are square shaped premium quality push buttons to work with various COPs and LOPs together seemlessly. 8 LEDs illuminate the transparent button icon and the outer square frame evenly(if the button has braille bumps they are also illuminated). 4 spring loads on each corner generates required force for EN81-70 standards. Locking mechanism system doesn’t require any screws and can be easily attached or detached. High quality tact switches are used to ensure a long life span of usage. Various braille or standard figures like numbers, letters and function icons are available. Different types of buttons also available for various purposes.

Features

▪ Even lighting via 8 LED elements
▪ Protruding symbols for people with poor eyesight
▪ Mat chrome-plated ABS body
▪ Durable silicone plunger of the tact switch
▪ Optional braille bumps, buzzer sound
▪ Bridge rectifier circuit (optional)
▪ Decorative surface finishes available

Share this product on

QUAD BUTTON OPTIONS

QDTB4.R

TBK4, LED(red), Protruded figures

QDTB4.B.B

TBK4, LED(blu), Braille bumps on push plate

QDJS3.WR.B.XP

JST3, LED(W/R), Braille bumps on push plate, XPAND

QDTB5.W12.B

TBK5, LED(red), NO+NO contact

P.QD.ERG

Protruted green body on button

QDTB3.FAN

TBK3, FAN on/off/timer, without relay

QDTB3.WR.Z.B

TBK3, LED(W/R), Braille bumps on push plate, Buzzer

B.QDJS3.WR.B

JST3, LED(W/R), Braille bumps on push plate

Available Figures
