EXCEL
*illustrative purposes only. Images may have contain extra features

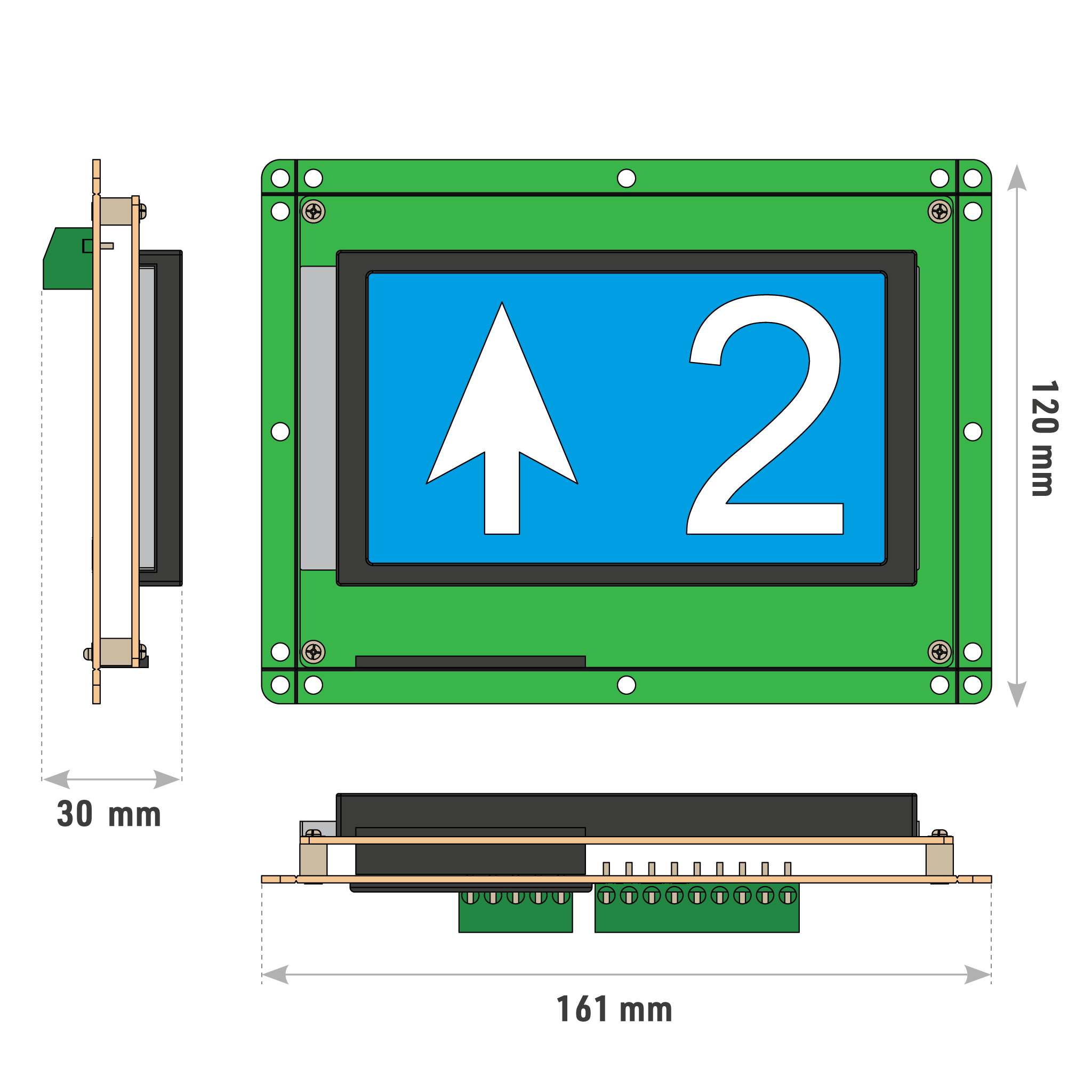

Dimensions
EXCEL
About
Programmable graphic LCD is suitable for any landing or car operator panel. Customizable display makes it the best choice for any elevator.
Programming kit PP200 / PP300 and a personal computer are enough to make your LCD-display show any picture or symbol you want.
Features
â–ª Display resolution 240×128 pixel
â–ª Display size 114x64mm
â–ª Operating voltage 12 VDC – 30 VDC
â–ª Linear power supply
â–ª Overload, busy, door open, fan, no service and additional inputs
â–ª 7 segment, Gray, binary, DO1, CMC3, CMC4, counter (pulse direction), MEA NG12-02, Automatic Signalling common polarity detection
Programming software
Programming kit PP200 / PP300 and a personal computer are enough to make your LCD-display show any picture or symbol you want.
Design examples
