Programmable graphic LCD is suitable for any landing or car operator panel. Customizable display makes it the best choice for any elevator.
Programming kit PP200 / PP300 and a personal computer are enough to make your LCD-display show any picture or symbol you want.

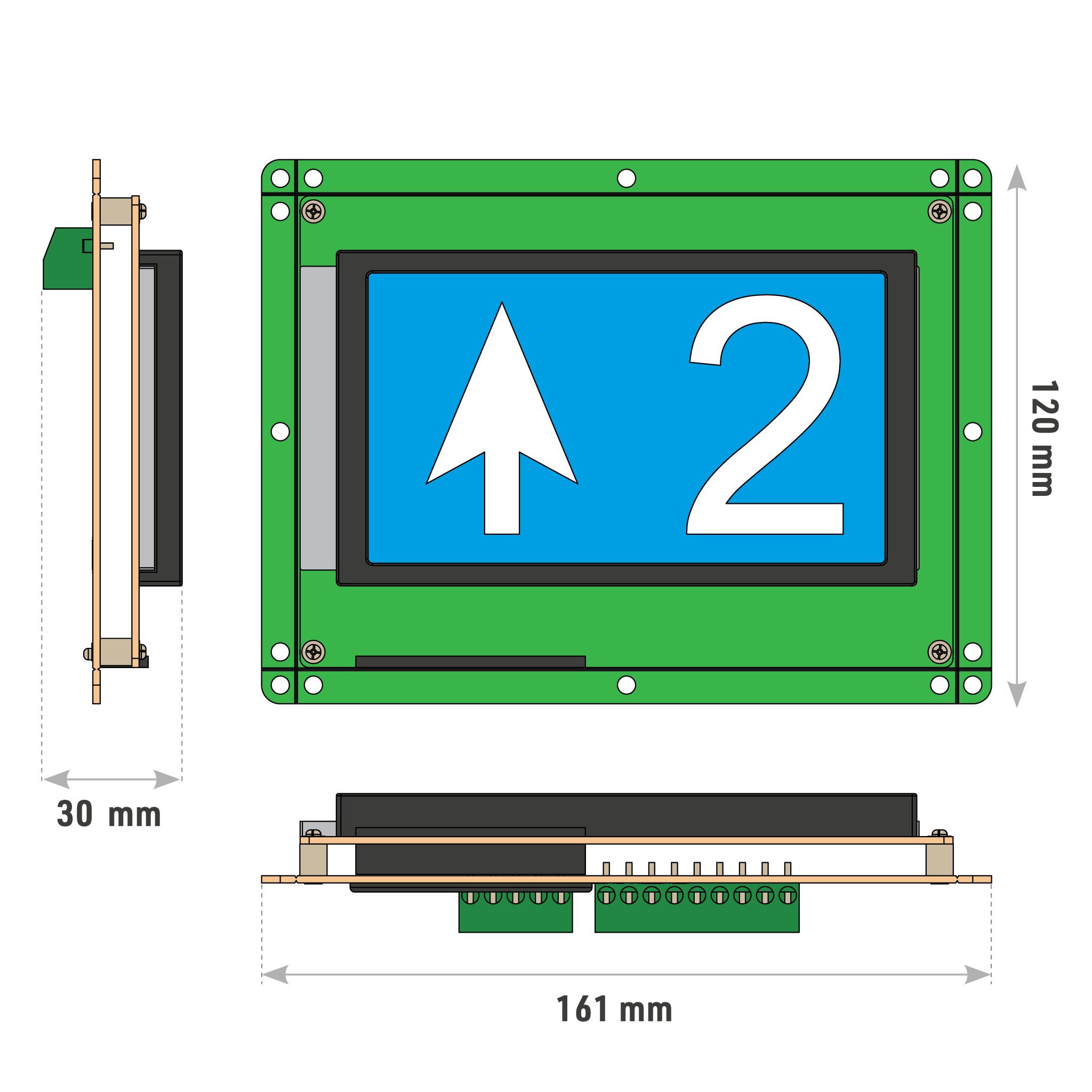

▪ Display resolution 240×128 pixel
▪ Display size 114x64mm
▪ Operating voltage 12 VDC – 30 VDC
▪ Linear power supply
▪ Overload, busy, door open, fan, no service and additional inputs
▪ 7 segment, Gray, binary, DO1, CMC3, CMC4, counter (pulse direction), MEA NG12-02, Automatic Signalling common polarity detection
