MEGA7-M7VT

MEGA7-M7VT

Yükleniyor...

*illustrative purposes only. Images may have contain extra features

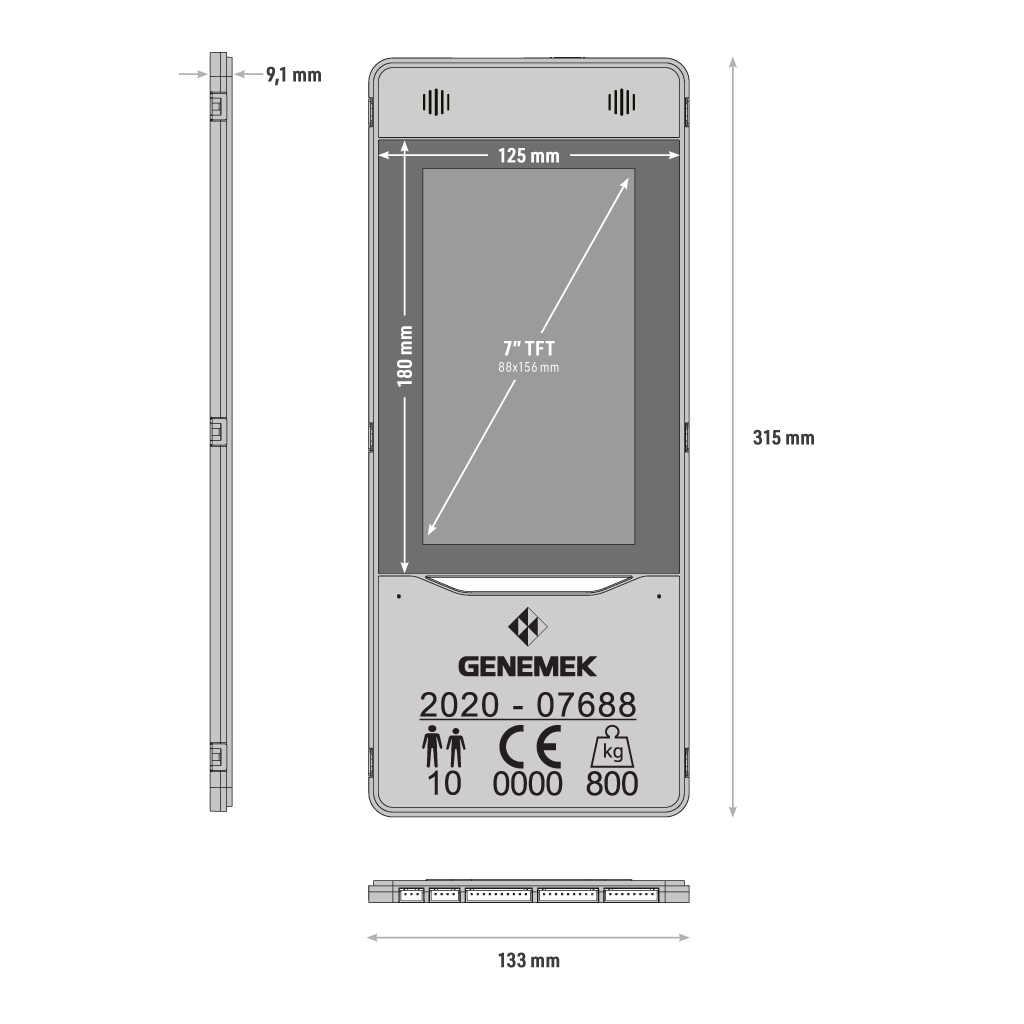

Dimensions
MEGA7-M7VT
Available surface finishes
MEGA7-M7VT
MEGA7-M7VT

MEGA7-M7VT

INTEGRATED FLOOR POSITION AND STATUS INDICATOR
About

New generation color TFT LCD type indicator panels have great advantage to show high resolution color images and real time high definition videos. Wide angle of visibility and crisp images with intense backlight brightness make MEGA7V.TF indicators are valuable for high-end elevators. Additional features like voice announcing, emergency state illumination, built-in communication systems results MEGA7V.TF is not only a simple floor position indicator but a complete in-car information panel for elevators. Elevator standards like EN81-20/28/70 are fully covered.

Features

▪ Linux based cutting edge operation system
▪ ARM Cortex A8 CPU with 4Gbit RAM
▪ 800×480 pixel, 156x88mm (7″) TFT LCD
▪ True color (16M) wide wieving angle
▪ 125x180mm scratch resistant mineral cover glass
▪ Voice announcing and high definition video playback
▪ Floor level defined video and image showing
▪ Seperate microphone and speaker for external autodialers
▪ Built-in two ways intercom
▪ USB and SDCARD interface
▪ Ultra-bright emergency lamp (EN81-20)
▪ Programmable input and output
▪ Plug-jack type cable sets for easy installation
▪ Configuration menu controlled via on-board buttons
▪ Thin profile height to match AVOX series COPs
▪ CANBUS serial type connection
▪ EN81-70, EN81-28, EN81-20 compliant
▪ Custom ID plate with laser marking
▪ Decorative surface finishes available
▪ Hard chrome plated ABS frame with stainless steel mountplate
