AVBG-DS
*Görseller temsilidir. Gerçek üründe olmayan ek özellikler olabilir.

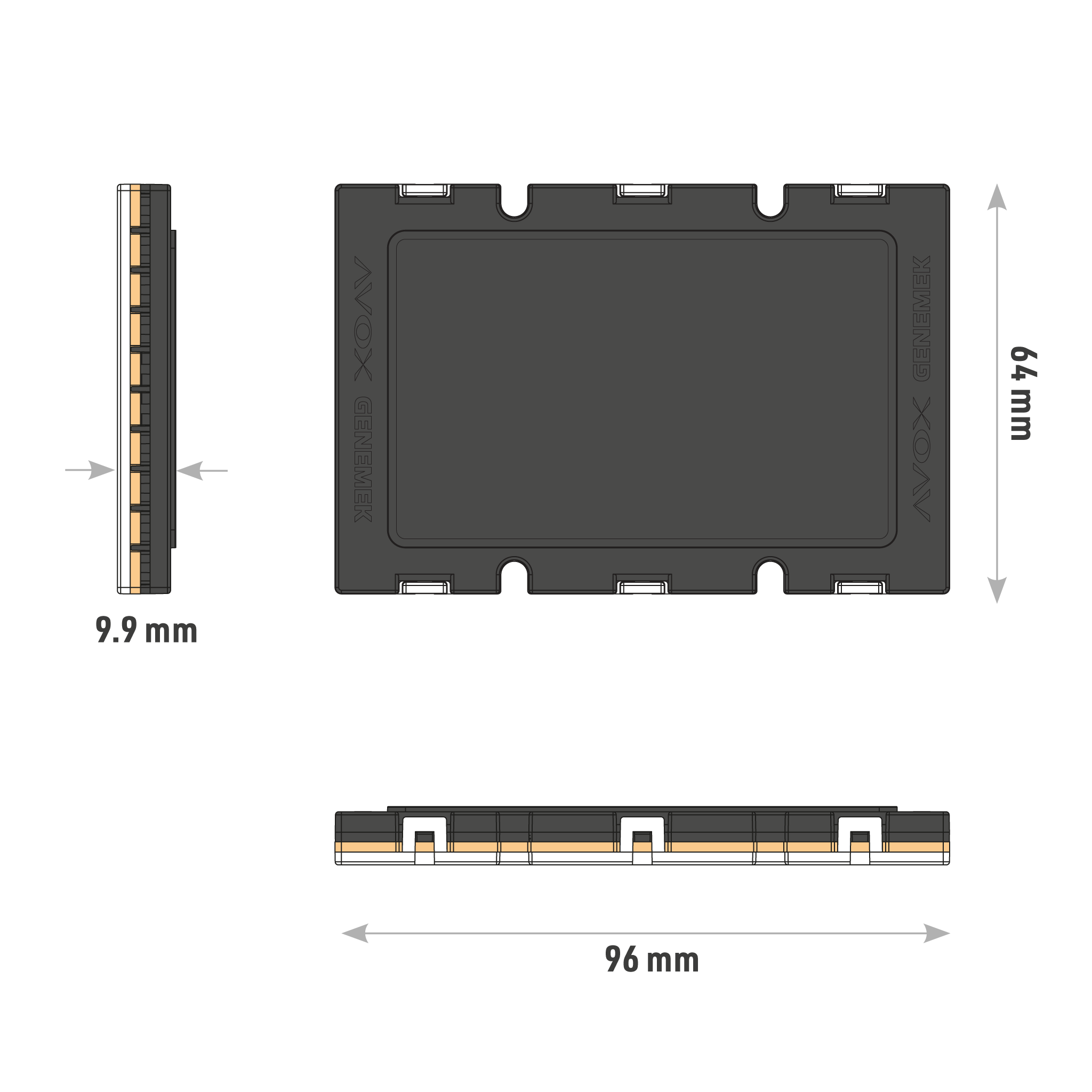

Boyutlar
AVBG-DS
Hakkında
AG-DSH / AG-DSV series are microcontroller operated position indicators for elevators. It accepts binary / gray coded decimal numbers and converts to 7 segment mapped position indications. Positive or negative input polarity can be adjusted without in need of dipswitches or jumpers by swapping power inputs. Configuration of inputs and floor designations can be adjusted by on-board buttons. Electrical connection are made by screw/nuts type terminals.
Özellikler
▪ Two digits 7 Segment LED indicator
▪ No service, up and down direction arrows
▪ Binary / Gray inputs
▪ Positive or Negative common signalling
▪ 9-30 VDC operating range
▪ User programmable floor designations
▪ Thin profile, suitable for surface mounted
▪ Various color options for LED’s
▪ Micro-controller operated
▪ High impact resistive polycarbonate cover glass
